The Pod & Panels Prefabricated building System

Allows for high quality buildings to be built  economically and in shorter time frames. Using Prefabricated Pods for Bathrooms & Kitchens allows the cabinetwork & plumbing  to be installed in the factory to a  high quality. The Sustainable Structural Insulated Panels (SIP's) Wall & Roof panels provide efficient construction on site & minimise waste.

[140 sqm house design shown]

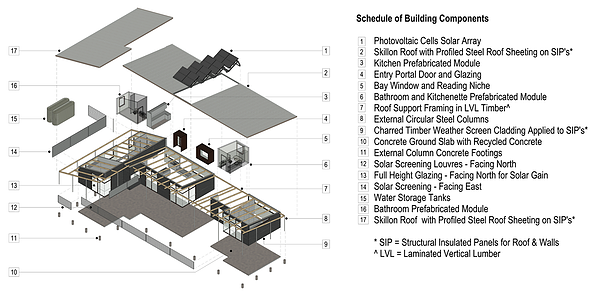

Exploded Isometric shows the design possibilities with the prefabricated panels and pod construction methodology

Exploded Isometric shows the design possibilities with the prefabricated panels and pod construction methodology

Video show the Pods & Panels Building System - assembly process with pre-fabricated pods & panels. The construction process allows lock-up to be quick - 1 day only for a 60sqm unit

[60 sqm house design shown]


NDIS, Apartments mixed Development


Project Details

Category: Architectural

Location: Belmont, WA

Status: Tender/Costing Process 2022

Project Team: Steven Pooley

Project Manager: TBC

Structural Engineer: Structerre

Compliance Certifier: BCA Certifiers

Builder: TBC

Description

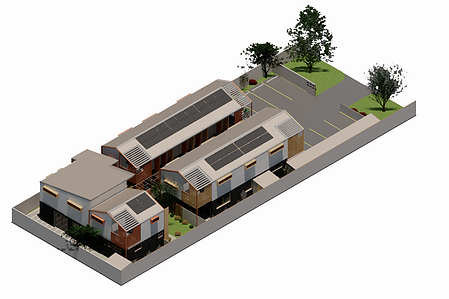

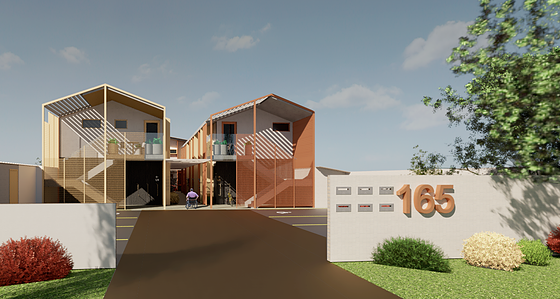

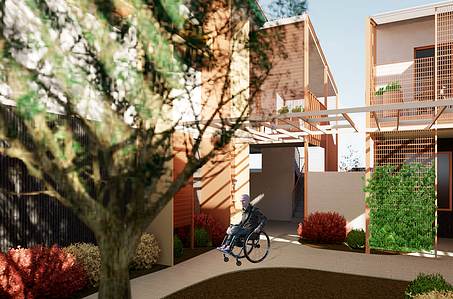

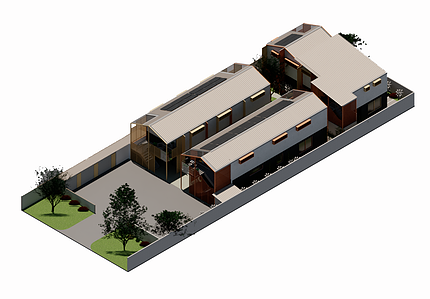

Saru Design approached a previous Client and Land-owner to discuss the possibility of designing and constructing three first floor Apartments combined with three NDIS ‘High Physical Support’ Housing Units (on the ground floor) of an existing lot in Belmont

Design was completed to Tender/Development Approval stage and currently the Project is being priced through the Tender Process before a formal Development Application is lodged. The Building Design included walls, & roof constructed from SIP Panels with Modular Kitchen, Bathroom Pods for reduced site attendance. Balcony and privacy screens where also designed to be constructed from standard flooring grating to reduce fabrication costs.

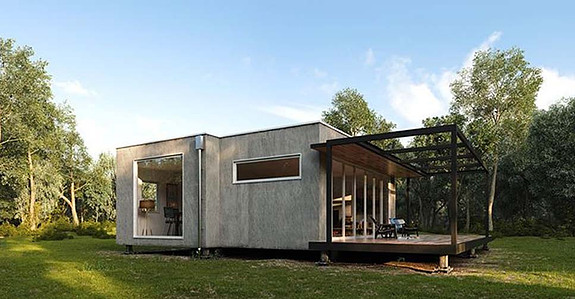

90 sqm house design shown lightweight steel internal panel framing typical energy of 10 mj's per sqm per year

The building System is equally adaptable to be used in Urban or Rural settings & provides higher levels of thermal comfort performance against conventical building methods.

 [90 sqm house design shown]

[200 sqm house design shown]

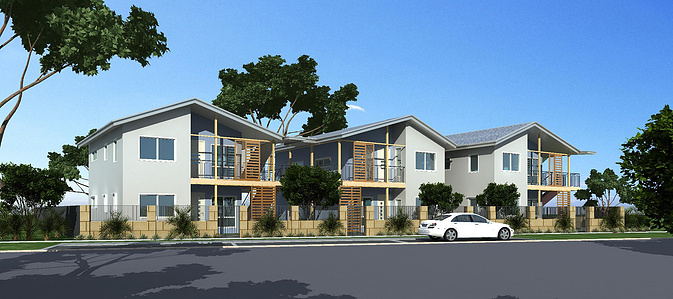

60 sqm apartment design shown panels designed fully finished internally & externally supplied with stairs, kitchen &​ bathroom pods

Pods & Panel Building System can be used for Two Storey building once additional Structural elements  are incorporated.

[70 sqm apartment design shown]

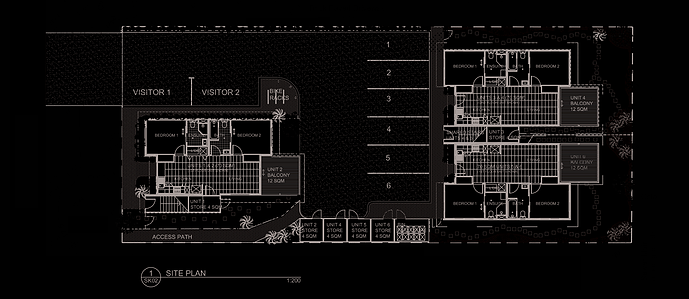

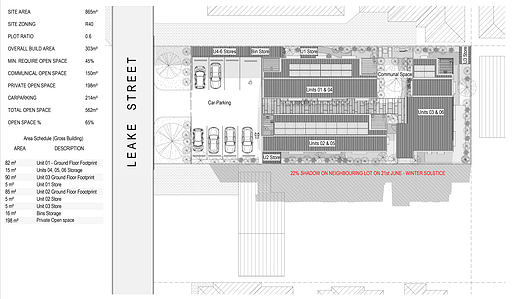

[6 No. 70 sqm apartment site plan shown]
